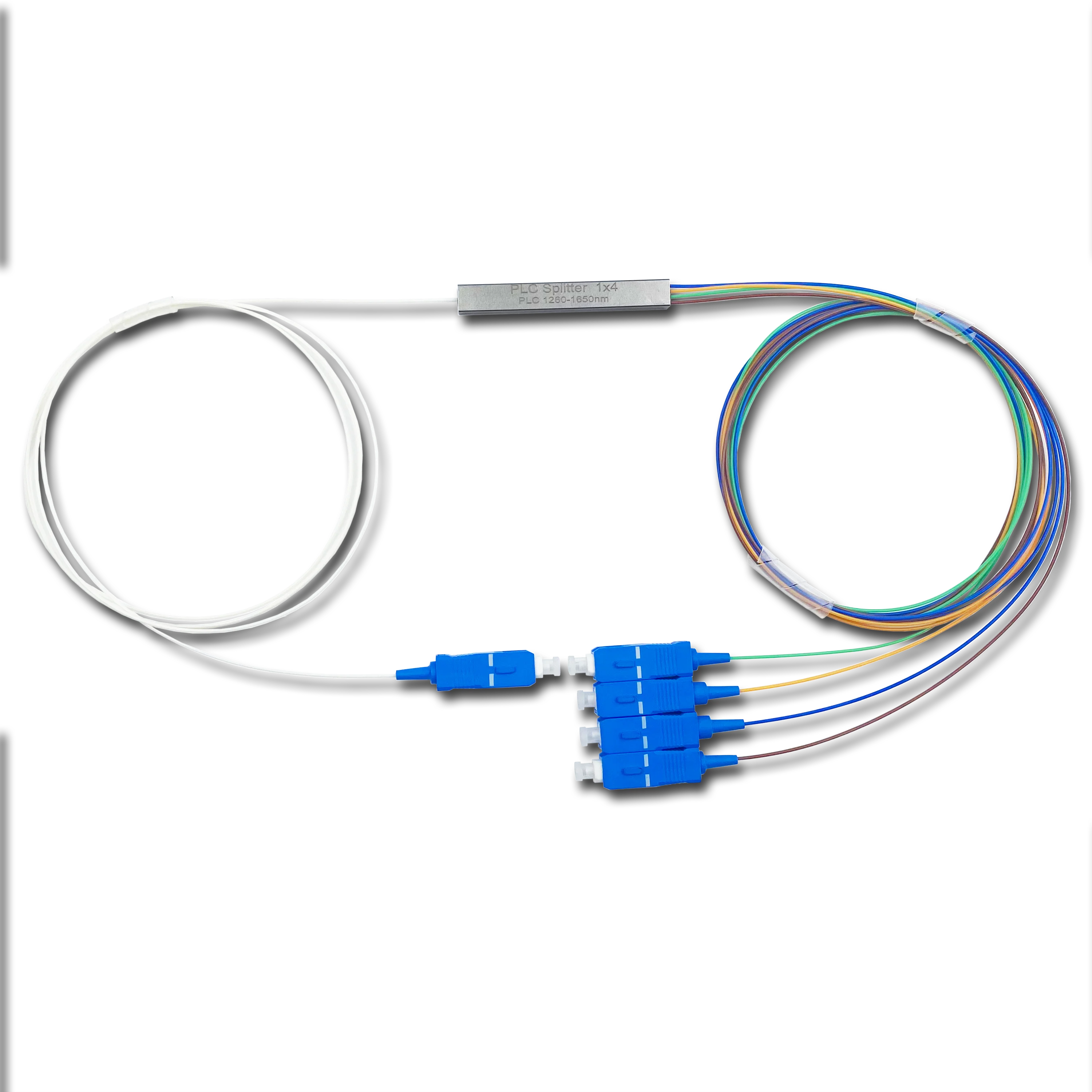

1x2/4/6/ 8/12/16 /32 Fiber Optic steel  tube Type  PLC Splitter with SC APC UPC MINI TYPE
1x2/4/6/ 8/12/16 /32 Fiber Optic steel  tube Type  PLC Splitter with SC APC UPC MINI TYPE
1x2/4/6/ 8/12/16 /32 Fiber Optic steel  tube Type  PLC Splitter with SC APC UPC MINI TYPE
1x2/4/6/ 8/12/16 /32 Fiber Optic steel  tube Type  PLC Splitter with SC APC UPC MINI TYPE
1x2/4/6/ 8/12/16 /32 Fiber Optic steel  tube Type  PLC Splitter with SC APC UPC MINI TYPE
1x2/4/6/ 8/12/16 /32 Fiber Optic steel  tube Type  PLC Splitter with SC APC UPC MINI TYPE
1x2/4/6/ 8/12/16 /32 Fiber Optic steel  tube Type  PLC Splitter with SC APC UPC MINI TYPE
1x2/4/6/ 8/12/16 /32 Fiber Optic steel  tube Type  PLC Splitter with SC APC UPC MINI TYPE
1x2/4/6/ 8/12/16 /32 Fiber Optic steel  tube Type  PLC Splitter with SC APC UPC MINI TYPE
1x2/4/6/ 8/12/16 /32 Fiber Optic steel  tube Type  PLC Splitter with SC APC UPC MINI TYPE
1x2/4/6/ 8/12/16 /32 Fiber Optic steel  tube Type  PLC Splitter with SC APC UPC MINI TYPE
1x2/4/6/ 8/12/16 /32 Fiber Optic steel  tube Type  PLC Splitter with SC APC UPC MINI TYPE

1x2/4/6/ 8/12/16 /32 Fiber Optic steel tube Type PLC Splitter with SC APC UPC MINI TYPE

Introduction
32 fiber optic steel  tube type  plc splitter with sc apc upc mini type-2

Description
The PLC (Planar Lightwave Circuit) planar waveguide optical splitter is composed of an optical waveguide chip and optical fiber arrays coupling at both ends. This product uses semiconductor lithography technology to manufacture the optical splitter chip,with stable process, good output consistency, loss and optical wavelength Irrelevant, good channel uniformity, compact structure and small size, widely used in optical fiber communication lines of telecom operators, especially FTTX projects.
Features
* Low Insertion loss
* Low PDL
* Compact Design
* Good channel-to-channel uniformity
* Wide Operating Wavelength: From 1260nm to 1650nm
* Wide Operating Temperature: From -40°C to 85°C
* High Reliability and Stability

Application
* Can be used for FTTX Systems
* Passive Optical Networks (PON)
* CATV TV Networks (CATV)
* Optical Signal Distribution

Specification
Item
Unit
Technical Data
Description
-
PLC-1X8-Steel tude-0.9-SCAPC
Wavelength
nm
1260-1650
Insertion Loss
dB
≤10.9
Channel Uniformity
dB
≤0.7
Return Loss
dB
≥55
Directionality
dB
≥55
Polarization Dependent Loss
dB
≤0.2
Package Size
mm
4*7*60
Fiber Color
-
Blue Orange Green Brown
Loose Tube Color
-
White
Maximum Power
mw
300
Operating Temperature
-10~75
Storage Temperature
-40~85
Fiber Type
-
G657A1
Package Style
-
1 PC / Blister Box
Package Information
-
Inner box:50pcs
Size:420*270*210mm
Weight:4.3kg
Outer box:200pcs
Size:570*430*460mm
Weight:17kg
32 fiber optic steel  tube type  plc splitter with sc apc upc mini type-3

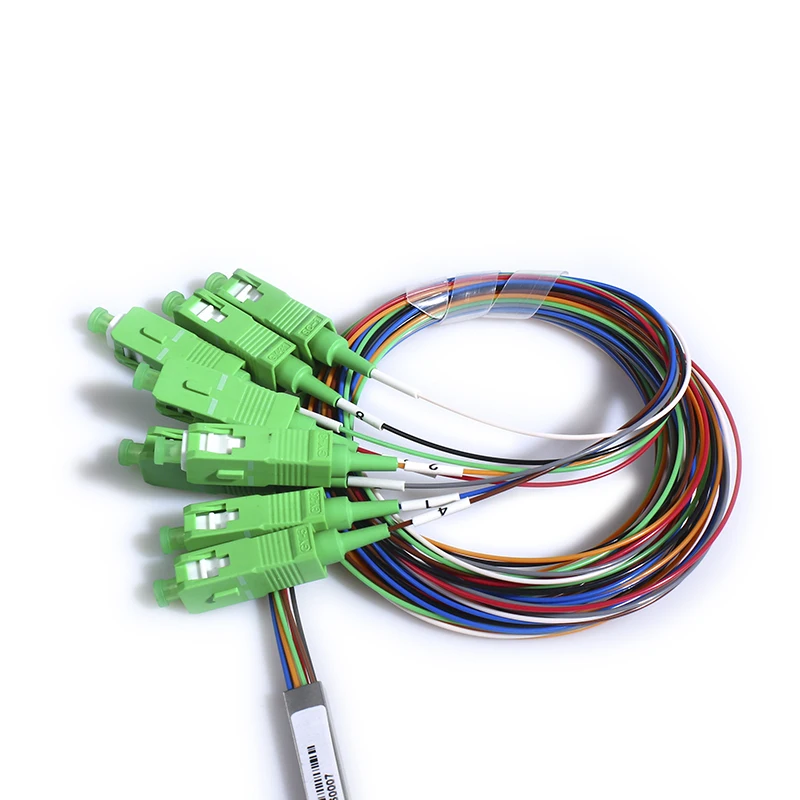

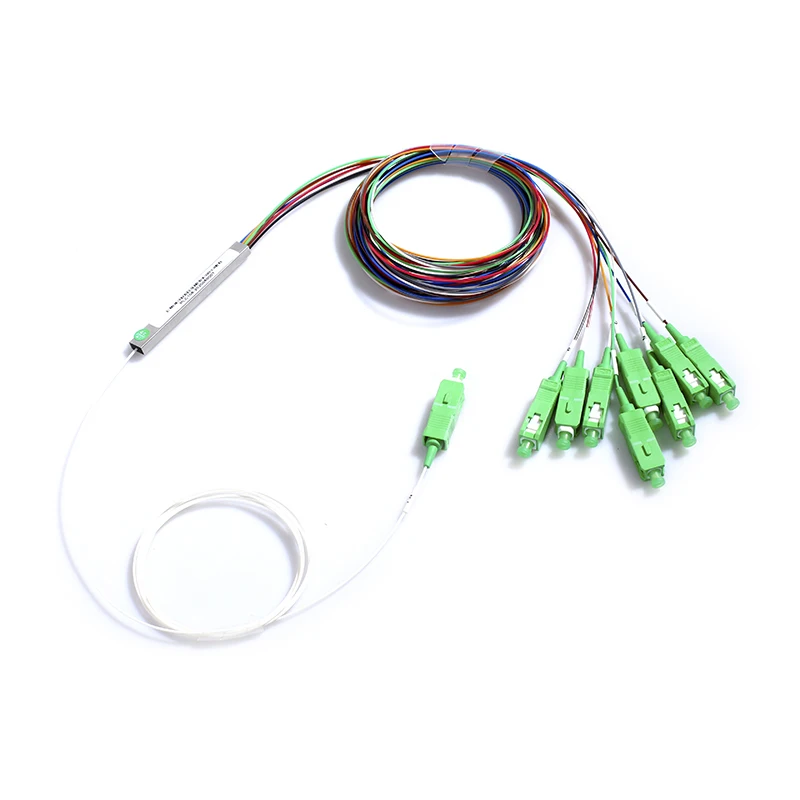

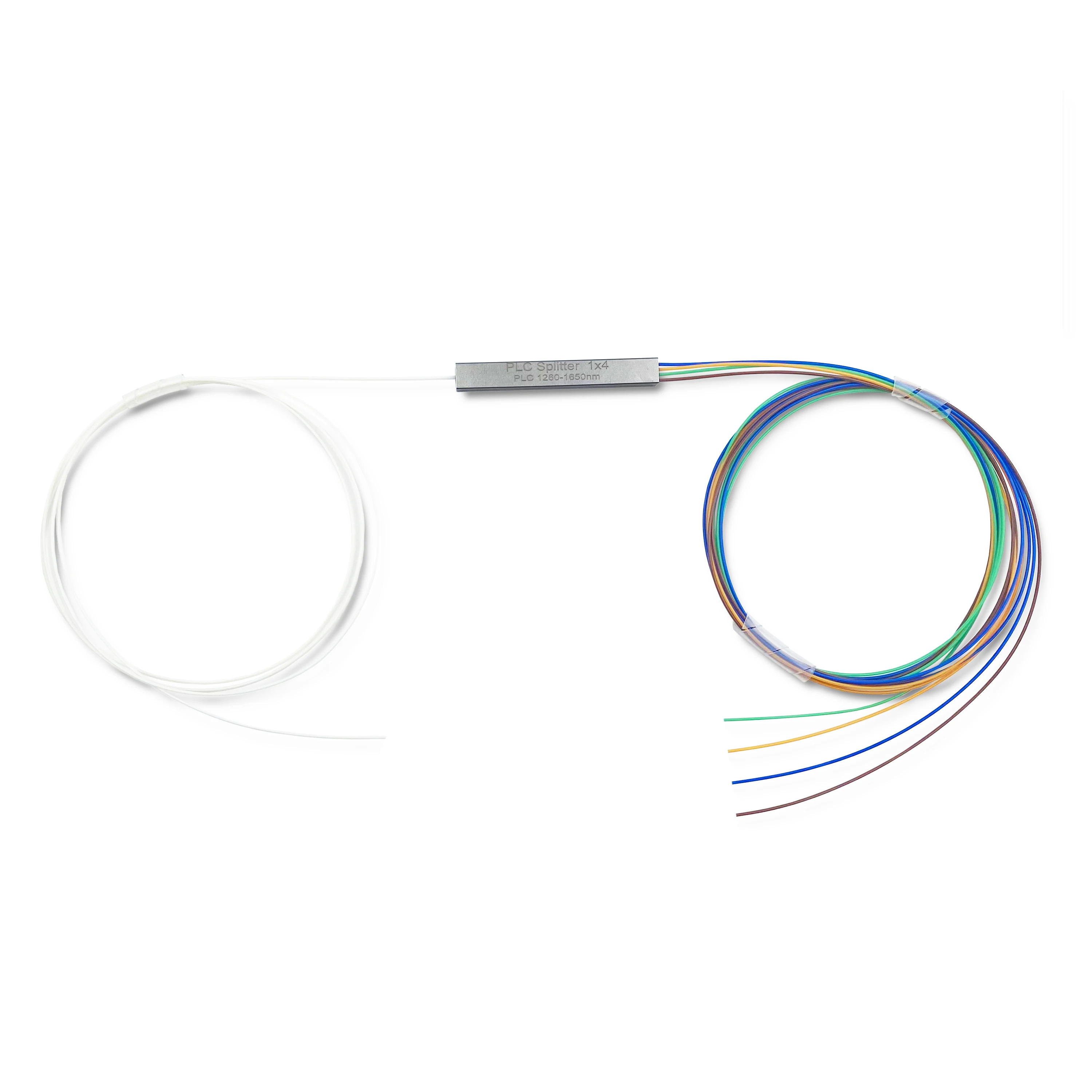

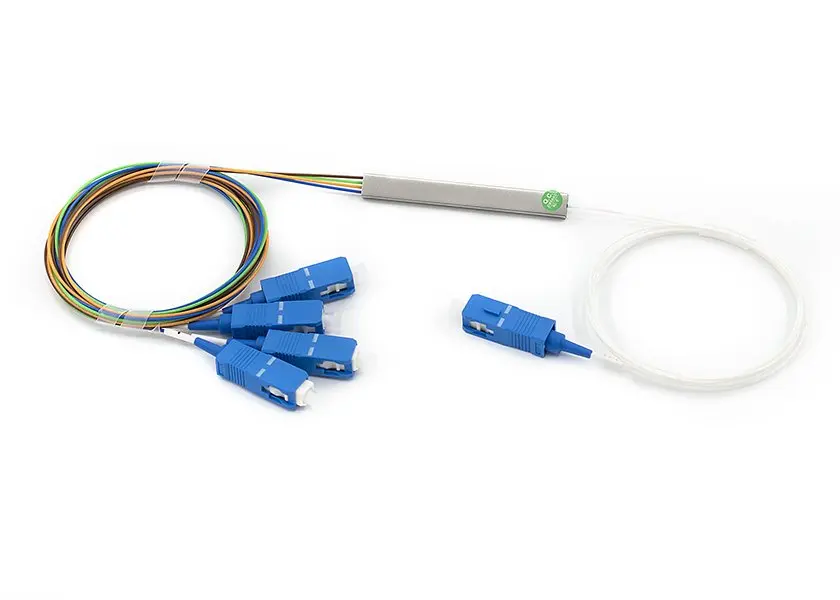

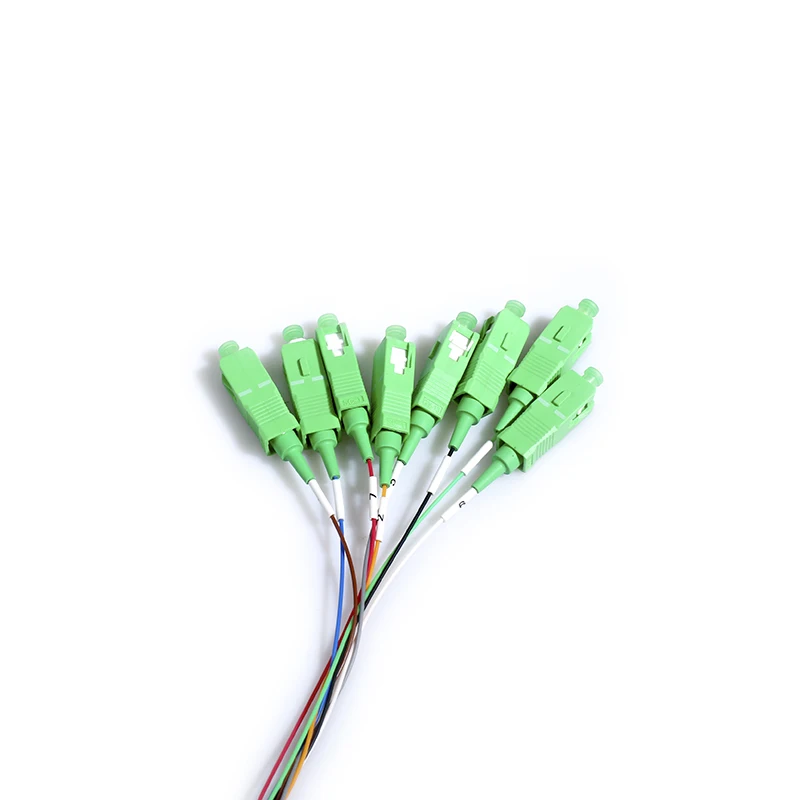

Detail Image
32 fiber optic steel  tube type  plc splitter with sc apc upc mini type-4
32 fiber optic steel  tube type  plc splitter with sc apc upc mini type-5
32 fiber optic steel  tube type  plc splitter with sc apc upc mini type-6
32 fiber optic steel  tube type  plc splitter with sc apc upc mini type-7
32 fiber optic steel  tube type  plc splitter with sc apc upc mini type-8
32 fiber optic steel  tube type  plc splitter with sc apc upc mini type-9
32 fiber optic steel  tube type  plc splitter with sc apc upc mini type-10
